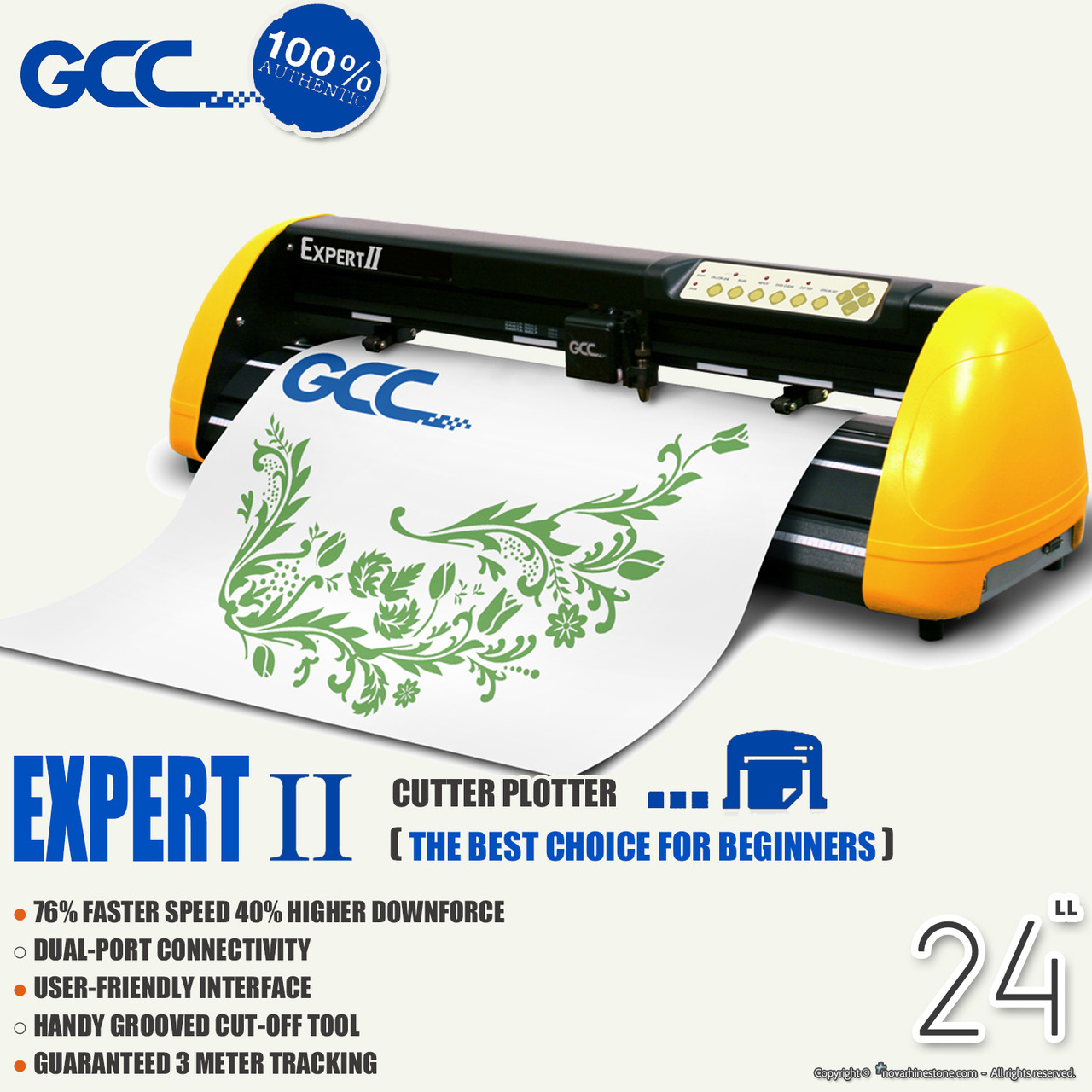

GCC Expert II 24"

GCC

~~$720.00~~ $690.00

(You save $30.00)

SKU:

899999090

Availability:

Ships from Texas, California

Shipping:

$15.00 (Fixed shipping cost)

Quantity:

Remark:

Ships by Ground. Other selection will be overridden.

Surcharge:

Temporary shipping surchage of $15 is added to reflect the extra cost of ocean freight by GCC. It will be removed once the ocean freight drops to a normal level.

Description
Product Review
Find Similar Products by Category

EXPERT II SERIES, THE BEST CHOICE FOR BEGINNERS Expert II Series provides optimum speed, superior quality, solid reliability and unmatched value. The versatile Expert II Series sets a new benchmark for value, offering high accuracy, reliability, and an eye-catching color combination at an unbelievably affordable price.
1 YEAR MANUFACTURER PART WARRANTY - Warranty is extended 3 month extra if registered
FEATURES
	Enhanced AAS II Contour Cutting System Automatic-Aligning System (AAS II) guarantees precise contour cutting by detecting the registration marks on digitally produced images. Functions include 1st-mark Auto-detection, 4-point positioning, Segmental Positioning, Multiple copies. (Available for Expert II LX Models)
	Guaranteed 3 Meter Tracking It comes with a stable drum that can guarantee 3 meter tracking to ensure quality outputs and saves you from wasted material and cost.
	Dual-port Connectivity GCC Expert II supports dual-port connectivity with USB and serial ports.
	Windows Drivers Expert II includes a "One Click" Windows driver that allows to edit design from CorelDraw and output directly to Expert II.
	User-friendly Interface It comes with a special VLCD software, providing a simple and intuitive workflow for users of all levels.
	Handy Grooved Cut-off Tool This handy and innovative design allows you to cut off a finished job in a straight line easily reducing the possibility of wasting usable material.
	GreatCut Cutter comes with GreatCut, Plug-in software for Illustrator, Corel Draw and AutoCAD
	VCM VCM (Voice Coil Motor) ensures cutting quality. As a result, Expert II can provide sophisticated cutting quality steadily and consistently. Rhinestone Application Expert II handles rhinestone stencil cutting with ease, people are amazed with its great versatility.
SPECIFICATIONS	Operational Method: Roller Type Max. Cutting Width: 23.6 inch (600 mm) Max. Cutting Length: 164 feet (50 meter) Max. Media Width: 28.3 inch (719 mm) Min. Media Width: 1.97 inch (50 mm) Number of Pinch Rollers: 3 Acceptable Material Thickness: 0.8mm Motor Drive: Stepper Cutting Force: 350 g Maximum Cutting Speed: 27.8 inch/second (705 mm/second) at 45° direction Acceleration: 0.7 G Offset: 0 ~ 1 mm (with an increase of 0.025 mm) Mechanical Resolution: 0.00049 inch (0.009 mm) Software Resolution: 0.00098 inch (0.025 mm) Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater Repeatability: ±0.1 Memory Buffer: 500 kbyte Interfaces: USB 2.0 (Full Speed) & Serial (RS-232C) Type of Command: HP-GL, HP-GL/2 Control Panel: 10 Control Keys and 6 LED Diameter of Blade: 2.5mm Dimension HxWxD: 9.1 x 10 x 34.6 inch (233 x 255 x 880 mm) Net Weight: 24.3 lb (11 kg) Stand: Optional Power Supply: AC 100-240V, 50-60 Hz (Auto Switching) Power Consumption: 65.5 Watts Operating Temperature: 60-86°F (15-30°C) Operating Humidity: 25-75% Relative Humidity Compatible with Windows 2000 / XP / Vista / 7 / 8 and MAC OS X 10.4-10.7 The spec and data may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly. The above listed specification values are effective only when operated with media certified by GCC. GCC reserves the right to change the spec without prior notice
ACCESSORIES	Optional Stand Optional Add-on Flat Table Optional Cutting Blades Optional Cutting Pad Optional Blade Holder
DOWNLOAD	GCC Expert II Brochure
VIDEOS	GCC Expert II Installation GCC Greatcut 3 Installation and Operation
